Pencetak pasta solder: Printer stensil semi-otomatis CHM-3250 Pilih dan tempatkan mahcine: Charmhigh chm-551p (4 kepala)
Oven reflow: CHM-F830-PC (4 zona, atas4+bawah4, dengan rel, dengan PC) Mesin lainnya: Konveyor SMT 50/ 60cm

Small & High Precision 4-head SMT Line PCBA Manufacturing PCB Assembly

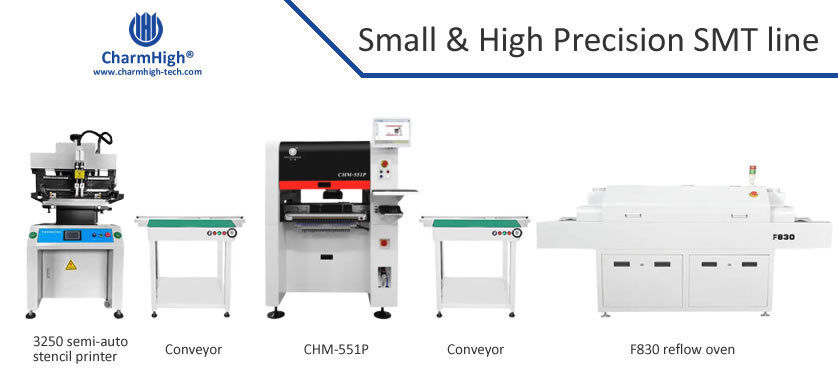

Complete small-scale, high-precision Surface Mount Technology line for PCB assembly manufacturing, featuring advanced automation and precision components.
Package Contents

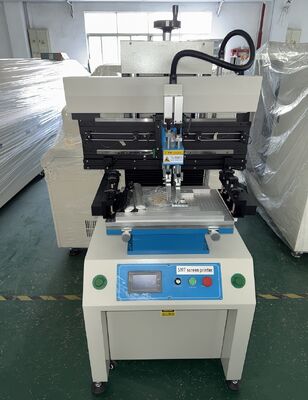

  • 3250 Semi-auto solder paste printer
  • SMT conveyor

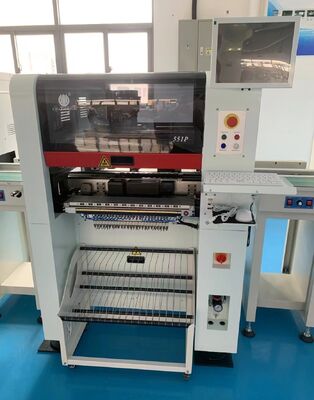

  • CHM-551P Charmhigh 4 heads pick and place machine
  • SMT conveyor
  • F830 reflow oven (up4 + down4 temp zones)
CHM-551P Specifications
Dimensions 1020mm(L) x 1180mm(W) x 1450mm(H)
Weight 556kg
Power Supply AC220V (50Hz, single phase) 1.5kw (average power 350w)
Air Supply 0.5MPa ~ 0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 4 heads
Mounting Speed 14400CPH (optimal)
Mounting Accuracy (XY)±0.035mm; CPK≥1.0
Component Height 12mm
Component Type 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.)
0201 to larger component 30*30mm size
PCB Thickness 0.6mm~3.5mm
PCB Size 350mm(L)x270mm(W) (Standard)
600mm(L)x350mm(W) (Optional)
Nozzle Change Automatic nozzle change (13-hole nozzle library)
Control System Linux system, equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration
Transmission System Ball screw + linear guide
Feeding System 50 Yamaha 8mm standard pneumatic/electric feeder stacks
(also suitable for IC tray and stick feeder)
Vision System Snapshot camerax4 (component size applicable: 14mm×14mm)
IC camerax1 (component size applicable: 30mm×30mm)
Mark camerax2

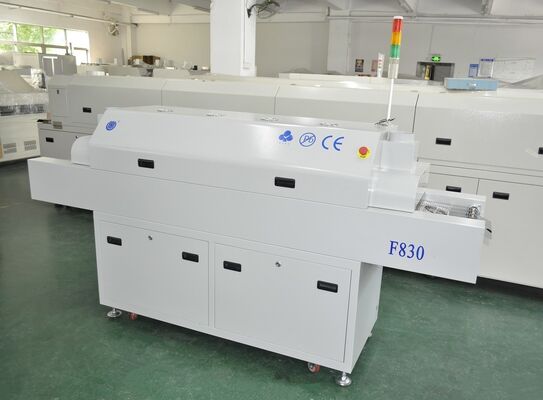

F830 Reflow Oven Specifications
Model CHM-F830
Number of Heating Zones Up 4 + Bottom 4
Length of Heating Zones 1400mm
Heating Pattern Up: Hot air; Bottom: Hot air (Forced convection of hot air, Taiwan SAYA motor)
Number of Cooling Zones 2 Plasma DC Fan
Max. Width Of PCB 300mm (stainless steel mesh belt)
Conveyor Direction L->R
Conveyor Height 880±20mm
Transport Mode Mesh Belt
Conveyor Speed Range 0-2200mm/min
Power Supply 5 Wire, 3 Phase, 380V 50/60Hz
Start Power 10KW
Power Consumption Approx 2.5KW
Warming Time Approx 15-20 mins
Temp. Setting Range Room Temp.- 380℃
Temperature Control Method Instrument-controlled
Temperature Difference Between Adjacent Zone 70 ℃, can correspond to the highest standards of lead-free process
Temperature Control Precision ±2℃
Temperature Deviation on PCB ±2℃
Abnormal Alarm Temperature abnormal (too high or too low after the constant temperature keeping)
Open Way Manual
Dimension(L*W*H)mm 2500*650*1400MM
Weight Approx 220Kg
Product Images
Small & High Precision 4-head SMT Line PCBA Manufacturing PCB Assembly 0 Small & High Precision 4-head SMT Line PCBA Manufacturing PCB Assembly 1 Small & High Precision 4-head SMT Line PCBA Manufacturing PCB Assembly 2 Small & High Precision 4-head SMT Line PCBA Manufacturing PCB Assembly 3 Small & High Precision 4-head SMT Line PCBA Manufacturing PCB Assembly 4 Small & High Precision 4-head SMT Line PCBA Manufacturing PCB Assembly 5
Warranty & Support

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory reliable direct supply.

We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.

Technical Support
Kimi Liu
Mobile: +86 135 106 75756
Email: kimi@charmhigh-tech.com
