Compact Design L-Type PCB Loader Unloader for Magazine Loading SMT Production Line

Compact Design L-Type PCB Loader Unloader for Magazine Loading SMT Production Line
Compact Design L-Type PCB Loader Unloader for Magazine Loading SMT Production Line Compact Design L-Type PCB Loader Unloader for Magazine Loading SMT Production Line Compact Design L-Type PCB Loader Unloader for Magazine Loading SMT Production Line Compact Design L-Type PCB Loader Unloader for Magazine Loading SMT Production Line Compact Design L-Type PCB Loader Unloader for Magazine Loading SMT Production Line

Gambar besar :  Compact Design L-Type PCB Loader Unloader for Magazine Loading SMT Production Line

Detail produk:
Tempat asal: Cina
Nama merek: Charmhigh
Sertifikasi: CE
Nomor model: 250/330/390/460
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: $1800 & $1950
Kemasan rincian: kotak kayu lapis
Waktu pengiriman: 5-7 HARI
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 100 Unit/Bulan
Kontak

Compact Design L-Type PCB Loader Unloader for Magazine Loading SMT Production Line

Deskripsi
Nama: Pemuat & pembongkaran PCB tipe-L Aplikasi: lini produksi smt otomatis penuh
Ukuran majalah PCB: 355*320*565mm; 460*400*565mm; 250 dimensi model: Pemuat: 1100x780x1200mm; Pembongkar: 1700x780x1200mm
330 dimensi model: Pemuat: 1400x860x1200mm; Pembongkar: 1900x860x1200mm Berat: 250 model: 140&150kg; Model 330: 150&170kg
Menyoroti:

Compact L-Type PCB Loader Unloader

,

PLC Control SMT Magazine Loader

,

Anti-Jam Protection Automatic PCB Loader

L-Type Space-saving PCB Loader Unloader Automatic SMT PCB Magazine Loader
This L-shape automatic PCB loader & unloader is specifically engineered for compact SMT production lines, handling both single-sided and double-sided printed circuit boards with precision and reliability. The length for L-type Loader and unloader is only 1000mm, compared with normal ones at 1100mm & 1700mm. Features PLC control with LED touchscreen, pneumatic clamping, 4-step pitch adjustment (10-40mm), SMEMA interface compatibility, and anti-jam protection. Ideal for space-constrained electronics manufacturing facilities.
Key Features
Feature Description
PLC Control LED touchscreen + tactile keypad for easy operation
Lifting Motor Single-phase gear motor for smooth vertical motion
Platform Precision-machined aluminum alloy, high stability, minimal deformation
Pneumatic Clamps Upper/lower clamps ensure accurate magazine positioning
Safety Protection Position sensors + limit switch braking for dual safety
Step Pitch 4 adjustable settings: 10/20/30/40mm
Fault Detection Auto error code display for quick troubleshooting
Status Alert Tri-color tower light with buzzer for real-time indication
Anti-Jam Design Poka-Yoke structure protects PCBs from damage
SMEMA Interface Seamless connection with other SMT equipment
Compact Size Small footprint ideal for space-limited factories
Technical Specifications
Specification L-250LD / L-250ULD L-330LD / L-330ULD
PCB Size (L*W) 50*50 - 350*250 mm 50*50 - 460*330 mm
Dimensions (L*W*H) 1000*1000*1350 mm 1100*1100*1350 mm
Magazine Size (L*W*H) 355*320*563 mm 460*400*565 mm
Weight (Kg) 140 Kg 170 Kg
Unloading Time < 6 seconds
Pusher Mode Motor-driven pusher
Transfer Direction Left -> Right or Right -> Left
Transfer Height 900 ± 30 mm (or customer-specified)
Air Pressure & Consumption 4-6 bar, max 10 liters/minute
Power Supply & Load 220V AC (user-specified), Single-phase, Max 300 VA
PCB Thickness Minimum 0.4 mm
Full Load Storage Capacity 50pcs PCB
Product Images

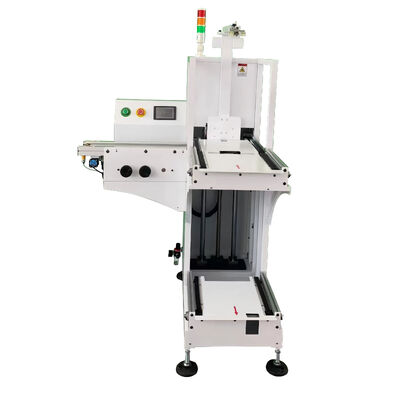

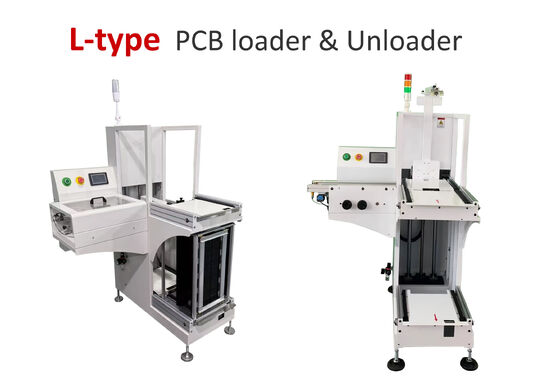

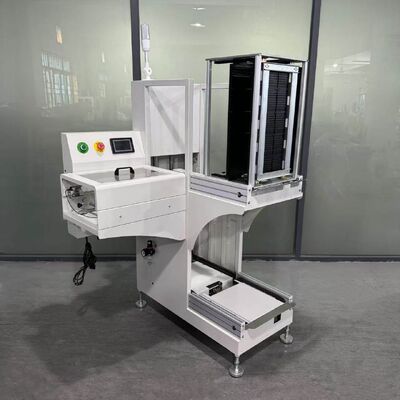

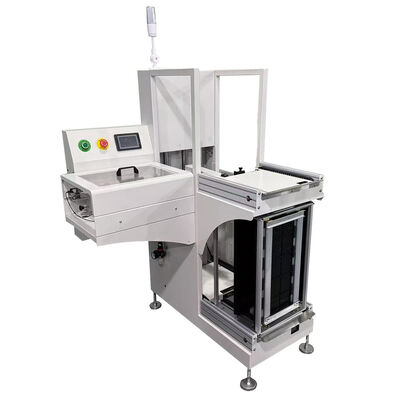

Compact Design L-Type PCB Loader Unloader for Magazine Loading SMT Production Line 0 Compact Design L-Type PCB Loader Unloader for Magazine Loading SMT Production Line 1 Compact Design L-Type PCB Loader Unloader for Magazine Loading SMT Production Line 2
Service & Warranty
Complete machine has a warranty period of 1 year from purchase date with lifetime service support.
  • Factory direct spare parts supply with guarantee
  • Online Q/A and troubleshooting support
  • Technical advice service
  • One-to-one after-sale service
  • Each machine 100% tested before shipment
Technical Support
Contact: Kimi Liu
Mobile/WhatsApp: +8613510675756
Email: kimi@charmhigh-tech.com
YouTube: Kimi Liu Charmhigh Channel
For more information, please contact us by email. We will respond promptly.
