20-head Dual-arm Dual-lane High Speed TS20 Automatic SMT Pick and Place Machine PCB Assembly

20-head Dual-arm Dual-lane High Speed TS20 Automatic SMT Pick and Place Machine PCB Assembly
20-head Dual-arm Dual-lane High Speed TS20 Automatic SMT Pick and Place Machine PCB Assembly 20-head Dual-arm Dual-lane High Speed TS20 Automatic SMT Pick and Place Machine PCB Assembly 20-head Dual-arm Dual-lane High Speed TS20 Automatic SMT Pick and Place Machine PCB Assembly 20-head Dual-arm Dual-lane High Speed TS20 Automatic SMT Pick and Place Machine PCB Assembly

Gambar besar :  20-head Dual-arm Dual-lane High Speed TS20 Automatic SMT Pick and Place Machine PCB Assembly

Detail produk:
Tempat asal: Cina
Nama merek: Charmhigh
Sertifikasi: CE
Nomor model: TS20 (20 kepala + 100 pengumpan)
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $56,800
Kemasan rincian: Kasing kayu lapis
Waktu pengiriman: 6-8 hari kerja
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 50 per bulan
Kontak

20-head Dual-arm Dual-lane High Speed TS20 Automatic SMT Pick and Place Machine PCB Assembly

Deskripsi
Dimensi: 1600 (l) x1688 (W) x1560 (h) Kepala: 20-head (10-head* 2 lengan); dengan perpustakaan nosel 31 lubang
Ukuran PCB: Konveyor Track Tunggal: 600*50-450mm; Konveyor Dual-Track: 600*50-250mm Kecepatan: 82000cph (optimal)
Pengumpan: Mendukung 100 pcs NXT Feeders Listrik Akurasi pemasangan: (XY) ± 40μM CPK≥1.0
Komponen: 01005, 0201.0402, -5050, SOP/QFP/QFN/BGA/LED .. Berat bersih: 2000kg
Kamera: Kamera Terbang: 10pcs*2 lengan (ukuran komponen 16*16mm); Tandai Kamera: 2 pcs*2 lengan Pengiriman PCB: 3 buah pengiriman otomatis dengan rel, lebar dapat disesuaikan dengan perangkat lunak
Catu daya: AC380V (50Hz, 3 fase) 6kw Komponen tertinggi: 12mm
Menyoroti:

20-head SMT pick and place machine

,

dual-arm PCB assembly machine

,

high-speed TS20 placement machine

Dual-arm Dual-lane high speed high precision 20-head SMT Pick and Place Machine TS20

Smart software Full In-line Large SMT production line


1.  Introduction

Double the Arms, Double the Lanes, Double the Output.
This TS20 adopts the integrated structure of precision machinery and uses Charmhigh independent research and development results.
It has the characteristics of high precision, high stability, complete functions and convenient use.
Unleash unparalleled productivity with our advanced dual-arm technology operating on two independent lanes.
Experience precision at speed and achieve a superior return on investment.
The TS20 is built to dominate your high-volume SMT production challenges.

2. Machine features
 1. Thermal Compensation
 2. Mounting Range: The minimum: 01005/maximum:16mm(L)×16mm(W)
 3. Built-in Vacuum Pump
 4. Automatic nozzle change(31 sets nozzle library)
 5. Dual Lane Shuttle Conveyor
 6. 10 head * 2 gantry(front and rear arms)
 7. 100 NXT8mm  feeder stacks
 8. Y-axis gantry integral casting
For more machine features, please consult our account manager


TS20 working video:
https://www.youtube.com/watch?v=Z94UJfxZoao


TS20 parameters:

Dimensions
1600mm(L)×1688mm(W)×1560mm(H)
Weight
2000kg
Power Supply
AC380V (50Hz, three phase), 6kW
Air Supply
0.5MPa ~0.7MPa
Vacuum Generation
Built-in vacuum pump
Mounting Head Quantity
10 head * 2 gantry (front and rear arms)
Mounting Speed
82000cph (optimal)
Mounting Accuracy
(XY)±40μm CPK≥1.0
Mounting Height
≤12mm
Mounting Type
Resistors and capacitors: resistors, cylindrical diodes, aluminum capacitors, SOT, SOP, QFP, QFN, BGA, etc.
Mounting Range
The minimum: 01005

The maximum:16mm(L)×16mm(W)
PCB Thickness
0.6mm~3.5mm
PCB Size
Single Lane 600mm(L)×50~450mm(W)

Dual Lane 600mm(L)×50~250mm(W)
PCB Conveying
Dual Lane Shuttle Conveyor
Nozzle Change
Automatic nozzle change (31-hole nozzle library*2 gantry)
Control System
Built-in industrial computer (Windows 7)
equipped with monitor*2, keyboard, and mouse
Drive System
X&Y axis driven by Panasonic A6 servo motors (Y axis by four motors); adopting flexible S-curve acceleration and deceleration
Transmission System
X&Y axis adopting THK ground screw and THK mute linear guide
(Y axis with four screws)
Feeding System
100 NXT 8mm standard feeder stacks
(also suitable for vibration feeder)
Vision System
Fly camera×10*2 gantry (component size applicable: 16mm×16mm);
Mark camera×2*2 gantry

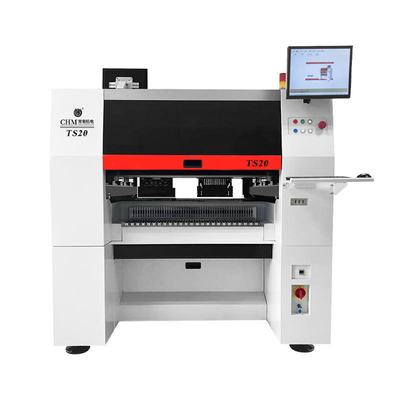

20-head Dual-arm Dual-lane High Speed TS20 Automatic SMT Pick and Place Machine PCB Assembly 0

20-head Dual-arm Dual-lane High Speed TS20 Automatic SMT Pick and Place Machine PCB Assembly 1

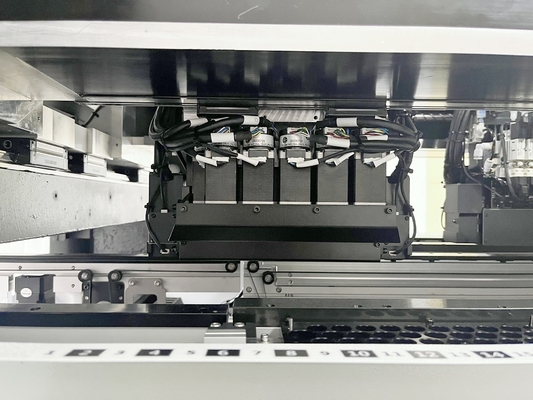

Dual-arms, dual-lane, high accuracy (XY)±40μm CPK≥1.0,  high speed high production 82000 CPH

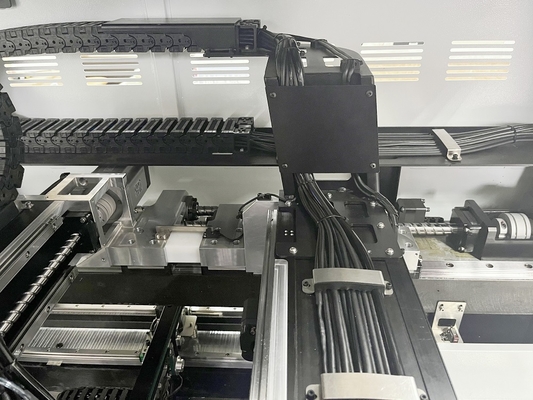

20-head Dual-arm Dual-lane High Speed TS20 Automatic SMT Pick and Place Machine PCB Assembly 2

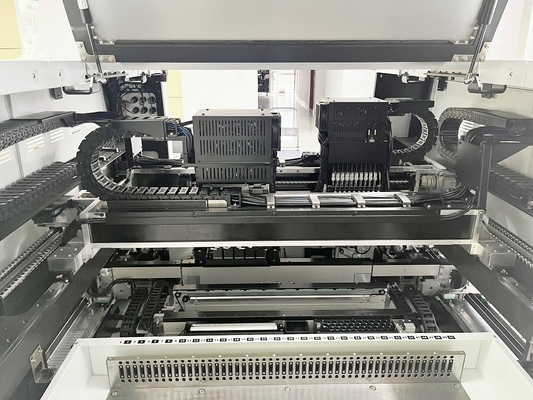

20-head Dual-arm Dual-lane High Speed TS20 Automatic SMT Pick and Place Machine PCB Assembly 3


Service & Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee.

We provide online Q/A and troubleshooting support and technical advice service.


We provide one to one after-sale service. Each machine 100% tested well before ship out.

Tech support:

Kimi Liu: Mob/ WhatsApp: +86 135 106 75756

E-mail: kimi@charmhigh-tech.com

Find us on YouTube: https://www.youtube.com/@KimiLiuCharmhigh/videos

If you want to know more information, please contact us by E-mail.

We will response you at the first time.
