CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm

CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm
CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm

Gambar besar :  CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm

Detail produk:
Tempat asal: Cina
Nama merek: Charmhigh
Sertifikasi: CE
Nomor model: CHM-PC850
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $9200
Kemasan rincian: Kasus kayu lapis
Waktu pengiriman: 6-8 hari
Syarat-syarat pembayaran: T/T, Serikat Barat
Menyediakan kemampuan: 50 per bulan
Kontak

CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm

Deskripsi
Daya operasi: 5-10kW Daya start-up: 45kw
Jumlah zona pemanasan: atas8/bawah8 Area pemanas: 3150*500mm
Dengan rel otomatis: Ya. Waktu pemanasan: sekitar 15-20 menit
Dengan kontrol PC: Ya, dengan komputer industri Jenis komponen: CSP, chip 0201, dll.
Dimensi: L 4600*1300*1470 mm Berat bersih: 2000kg

CHM-PC850 Full automatic rail large reflow oven + PC control 8 temperature zones (up8+down8)

Lead-free SMT Reflow Oven SMT soldering oven, heating size 3150*500mm


PC850 Big-Sized 8 Zones Lead-Free SMT Reflow Soldering Oven

Model No. CHM-PC850
Heating Parts Parameters
Number of Heating Zones Up8 + Bottom8
Length of Heating Zones 3150mm
Heating Pattern Full Hot Air (up and down in a small cycle)
Number of Cooling Zones Plasma fan air-cooled plus two-stage liner cooling (length 800MM)
Conveyor Parts Parameters
Max.Width Of PCB Mesh width 500mm
Conveyor Direction L→R
Conveyor Height 880±20mm
Transmission Agent Mesh + automatic rail
Conveyor Speed Range 0-2000mm/min
Control Parts Parameters
Power Supply 5 Wire, 3 Phase, 380V
Start Power 48KW
Power Consumption Approx 8-10KW
Warming Time Approx 20 mins
Temp. Setting Range Room Temp.-380℃
Temperature Control Method PC+PID+SSR
Temperature Difference Between Adjacent Zone 70 ℃, can correspond to the highest standards of lead-free process.
Temperature Control Precision ±2℃
Temperature Deviation on PCB ±2℃
Abnormal Alarm Temperature abnormal(too high or too low after the constant temperature keeping)
Power-off Protection UPS
Open Way Electric Screw Rod
General Parameters
Dimension(L*W*H)mm 4600*1300*1470 mm
Weight Approx 2000Kg

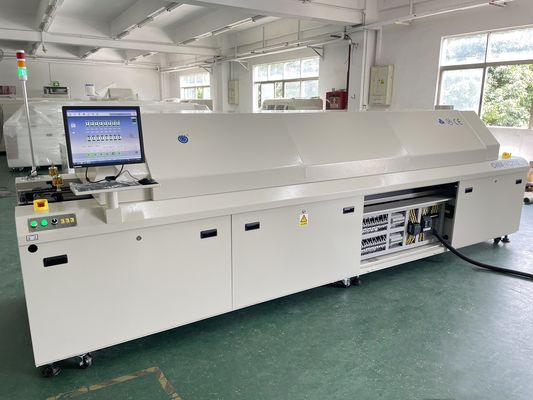

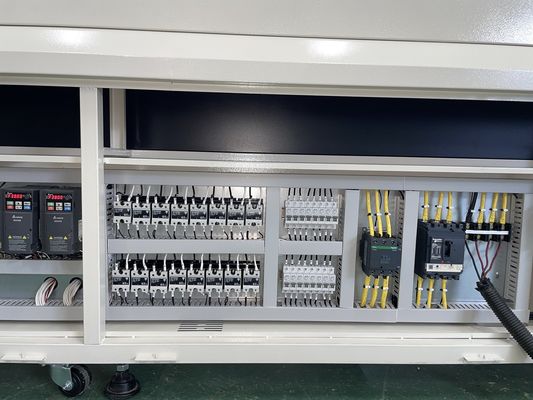

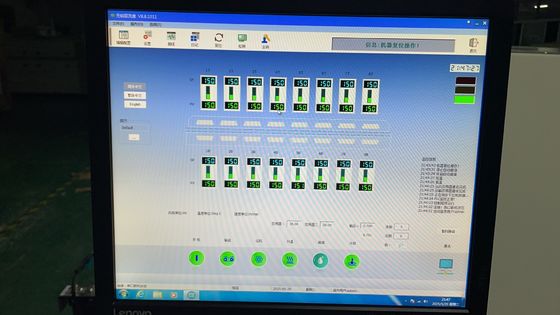

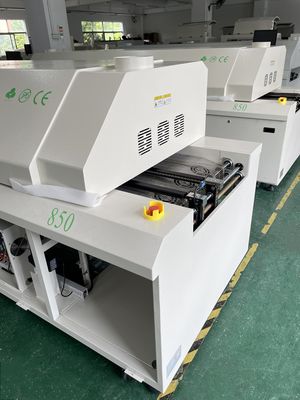

Real pictures for CHM-PC850:

CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm 0


CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm 1


CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm 2


CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm 3


CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm 4


Recommend large SMT production line:

1. PCB loader

2. Full-automatic solder paste printer G5

3. PCB conveyor

4. Pick and place machine TS10 (10 heads)

5. Pick and place machine TM08 (8 heads)

6. PCB conveyor

7. 8 temp. zones reflow oven CHM-PC850

8. PCB unloader


CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm 5


CHM-PC850 Lead-free Large Reflow Oven 8 Zones Full Automatic Rail + PC Control 3150x500mm 6


Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support:
Kimi Mob/ WhatsApp: +86 135 106 75756
E-mail: kimi@charmhigh-tech.com

Welcome to follow us in YouTube:  https://www.youtube.com/@KimiLiuCharmhigh/videos

If you want to see more information and videos, please contact us by E-mail.
We will response you at the first time.
