Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering

Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering
Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering

Gambar besar :  Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering

Detail produk:
Tempat asal: Cina
Nama merek: Charmhigh
Sertifikasi: CE
Nomor model: PC6635 (tipe terpisah)
Dokumen: CHM-PC6635 reflow oven - In...on.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $4800
Kemasan rincian: KOTAK KAYU
Waktu pengiriman: 5-8 hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 100 per bulan
Kontak

Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering

Deskripsi
Ukuran: P3500×L720×T1400 Kuantitas zona pemanas: atas6/bawah6
Area pemanas: Ukuran 2200*350mm Waktu pemanasan: Sekitar 15-20 menit
Berat bersih: 400KG Jenis: Bebas timbal
Menyoroti:

6 Heating Zones SMT Reflow Oven

,

2200*350mm Heating Area Reflow Soldering Machine

,

Modular Design Lead-free Reflow Oven

Split-Type Reflow Oven PC6635 Lead-free SMT Reflow Soldering Machine

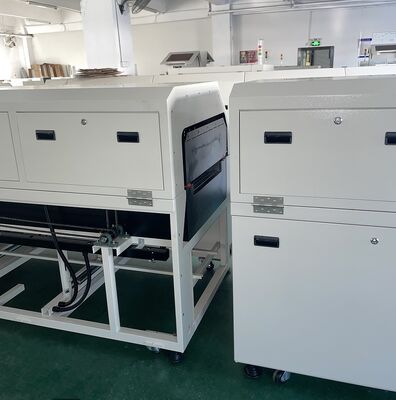

Compact Modular Design for Space-Constrained Facilities
The PC6635 Modular Reflow Oven is a high-efficiency SMT reflow soldering solution featuring a segmented modular structure that enables easy transport, installation, and maintenance. The split-type design facilitates narrow doorway passage, making it ideal for factories with limited space or elevator access restrictions.
Key Features
  • 6 heating zones for precise temperature control and stable thermal profiles
  • Modular design allows flexible configuration and quick on-site assembly
  • Reduces installation time and logistics costs
  • Consistent soldering quality for various PCB assemblies
  • Compact footprint for space-saving operation
Technical Specifications
Parameter Specification
Model PC6635 (PC, up6+down6, 350mm width)
Heating Zones Up6 + Down6
Heating Length 2200mm
Cooling Zones 2
Max PCB Width Mesh width 350mm, Rail adjustable 250mm
Conveyor Direction L→R (R→L optional)
Conveyor Height Mesh 880±20mm
Transport System Mesh conveyor + Rail conveyor
Conveyor Speed 0-2000mm/min
Power Supply 5 wires 380V 50/60Hz
Startup Power 24KW
Operating Power Consumption Approx. 5-6KW
Control System Industrial PC + monitor
Warm-up Time Around 20 minutes
Temperature Range Room Temperature - 350℃
Temperature Control Industrial PC + Temperature module control, SSR Driver
Temperature Control Precision ±1℃
Temperature Distribution Error ±3℃
Trouble Alarms Abnormal temperature (ultra-high or ultra-low temperature after constant temperature)
Board Drop Alarm Optional
Net Weight Approx. 400kg
Dimensions (L×W×H) 3600×700×1430mm

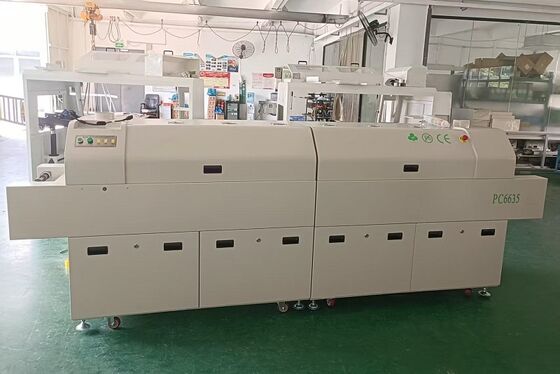

Product Images
Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering 0 Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering 1 Split-Type 6-Zone SMT Reflow Oven PC6635 Modular Design for Lead-free Soldering 2
Recommended SMT Assembly Line Configuration
  1. 3250 semi-auto solder paste printer
  2. PCB conveyor
  3. CHM-551P SMT pick and place machine
  4. PCB conveyor
  5. PC6635 reflow oven
Warranty & Support
The complete machine has a warranty period of 1 year from the time of purchase with lifetime service support.
  • Factory direct supply of spare parts
  • Online Q/A and troubleshooting support
  • Technical advice service
  • One-to-one after-sales service
  • Each machine 100% tested before shipment
Technical Support Contact
Kimi Mobile/WhatsApp: +8613510675756
Email: kimi@charmhigh-tech.com
YouTube: KimiLiu Charmhigh Channel
For more information and videos, please contact us by email. We will respond promptly.
